NSK Taper Roller Bearing HR32936J P4

NSK Taper Roller Bearing HR32936J P4

China NSK Taper Roller Bearing HR32936J P4 supplier
NSK Taper Roller Bearing HR32936J P4 supplier NSK Taper Roller Bearing HR32936J P4 supplier NSK Taper Roller Bearing HR32936J P4 supplier NSK Taper Roller Bearing HR32936J P4 supplier

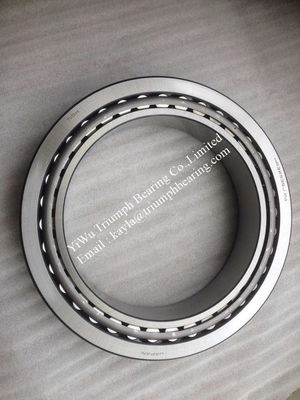

Large Image :  NSK Taper Roller Bearing HR32936J P4

Product Details:

Place of Origin: Japan
Brand Name: NSK
Model Number: HR32936J P4

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: FOB
Packaging Details: Carton Box
Delivery Time: within one days
Payment Terms: T.T IN ADVANCE
Supply Ability: 5000PCS
Contact Now
Detailed Product Description

Specifications








HR30203J HR30302J HR31305D HR32004J HR33108J
HR30204J HR30303J HR31306D HR320/22J HR33109J
HR30205J HR30304J HR31307D HR32005J HR33110J
HR30206J HR30305J HR31308D HR32006J HR33111J
HR30207J HR30306J HR31309D HR320/32J HR33112J
HR30208J HR30307J HR31310D HR32007J HR33113J
HR30209J HR30308J HR31311D HR32008J HR33114J
HR30210J HR30309J HR31312D HR32009J HR33115J
HR30211J HR30310J HR31313D HR32010J HR33116J
HR30212J HR30311J HR31314D HR32011J HR33117J
HR30213J HR30312J HR31315D HR32012J HR33118J
HR30214J HR30313J HR31316D HR32013J HR33119J
HR30215J HR30314J 31317D HR32014J HR33120J
HR30216J HR30315J 31318D HR32015J HR33122J
HR30217J HR30316J 31319D HR32016J HR33124J
HR30218J HR30317J 31320D HR32017J HR33126J
HR30219J HR30318J 31322D HR32018J HR33205J
HR30220 HR30319 31324D HR32019J HR332/28J
HR30221 HR30320 31326D HR32020 HR33206J
HR30222 HR30322 31328D HR32021 HR332/32J
HR30224 HR30324 31330D HR32022 HR33207J
HR30226 HR30326 31332D HR32024 HR33208J
HR30228 HR30328 31334D HR32026 HR33209J
HR30230 HR30330 31336D HR32028 HR33210J
HR30232 HR30332 31338D HR32030 HR33211J
HR30234 HR30334 31340D HR32032 HR33212J




Specifications



Description:

NSK Taper Roller Bearing

Bearings of this type use conical rollers guided by a back-face rib on the cone. These bearings are capable of taking high radial loads and also axial loads in one direction. In the HR series, the rollers are increased in both size and number giving the bearing an even higher load capacity.
They are generally mounted in pairs in a manner similar to single-row angular contact ball bearings. In this case, the proper internal clearance can be obtained by adjusting the axial distance between the cones or cups of the two opposed bearings. Since they are separable, the cone assemblies and cups can be mounted independently.
Depending upon the contact angle, tapered roller bearings are divided into three types called the normal angle, medium angle, and steep angle. Double-row and four-row tapered roller bearings are also available. Pressed-steel cages are generally used.

Detailed introduction to NSK Taper Roller Bearing:

NSK tapered roller bearings have two types,they are metric design tapered roller bearings and inch design taperde roller bearings.

Metric Design Tapered Roller Bearings

For metric-design medium-angle and steep-angle tapered roller bearings, the respective contact angle symbol C or D is added after the bore number. For normal-angle tapered roller bearings, no contact angle symbol is used. Medium-angle tapered roller bearings are primarily used for the pinion shafts of differential gears of automobiles. Among those with high load capacity (HR series), some bearings have the basic number suffixed by J to conform to the specifications of ISO for the cup back face raceway diameter, cup width, and contact angle. Therefore, the cone assembly and cup of bearings with the same basic number suffixed by J are internationally interchangeable. Among metric-design tapered roller bearings specified by ISO 355, there are those having new dimensions that are different than the dimension series 3XX used in the past. Parts of them are listed in the bearing tables. They conform to the specifications of ISO for the smaller end diameter of the cup and contact angle. The cone and cup assemblies are internationally interchangeable.

Inch Design Tapered Roller Bearings

Besides metric design tapered roller bearings, there are also inch design bearings.



NSK Taper Roller Bearing HR32936J P4



OUR PRODUCTS ON STORAGE ARE :



HR30203J HR32207J HR30307DJ HR32915J
HR30204J HR32208J HR30308DJ HR32916J
HR30205J HR32209J HR30309DJ HR32917J
HR30206J HR32210J HR30310DJ HR32918J
HR30207J HR32211J HR30311DJ HR32919J
HR30208J HR32212J HR30312DJ HR32920J
HR30209J HR32213J HR30313DJ HR32921J
HR30210J HR32214J HR30314DJ HR32922J
HR30211J HR32215J HR30315DJ HR32924J
HR30212J HR32216J HR30316DJ 32926
HR30213J HR32217J HR30317DJ 32928
HR30214J HR32218J HR30318DJ 32930
HR30215J HR32219J HR30319DJ 32932
HR30216J HR32220J 30322X 32934
HR30217J HR32221J 30324X 32936
HR30218J HR32222J 30326X 32938
HR30219J HR32224J 30328X 32940
HR30220J HR32226J 30330X 32944
HR30221J HR32228J HR32004XJ 32948
HR30222J 32230 HR3200/22XJ 32952
HR30224J 32232 HR32005XJ 32956
30226 32234 HR320/28XJ 32960
HR30228J 32236 HR32006XJ 32964
30230 32238 HR320/32XJ 32968
30232 32240 HR32007XJ 32972
30234 HR32304J HR32008XJ HR33005J
30236 HR32305J HR32009XJ HR33006J
30238 HR32306J HR32010XJ HR33007J
30240 HR32307J HR32011XJ HR33008J
HR30302J HR32308J HR32012XJ HR33009J
HR30303J HR32309J HR32013XJ HR33010J
HR30304J HR32310J HR32014XJ HR33011J
HR30305J HR32311J HR32015XJ HR33012J
HR30306J HR32312J HR32016XJ HR33013J
HR30307J HR32313J HR32017XJ HR33014J
HR30308J HR32314J HR32018XJ HR33015J
HR30309J HR32315J HR32019XJ HR33109J
HR30310J HR32316J HR32020XJ HR33110J
HR30311J HR32317J HR32021XJ HR33111J
HR30312J HR32318J HR32022XJ HR33112J
HR30313J 32319 HR32024XJ HR33113J
HR30314J HR32320J HR32026XJ HR33114J
HR30315J 32321J HR32028XJ HR33115J
HR30316J HR32322J HR32030XJ HR33116J
HR30317J HR32324J HR32032XJ HR33117J
30318 32326 HR32034XJ HR33118J
30319 32328 HR32036XJ HR33205J
30320 32330 HR32038XJ HR33206J
HR30322J
