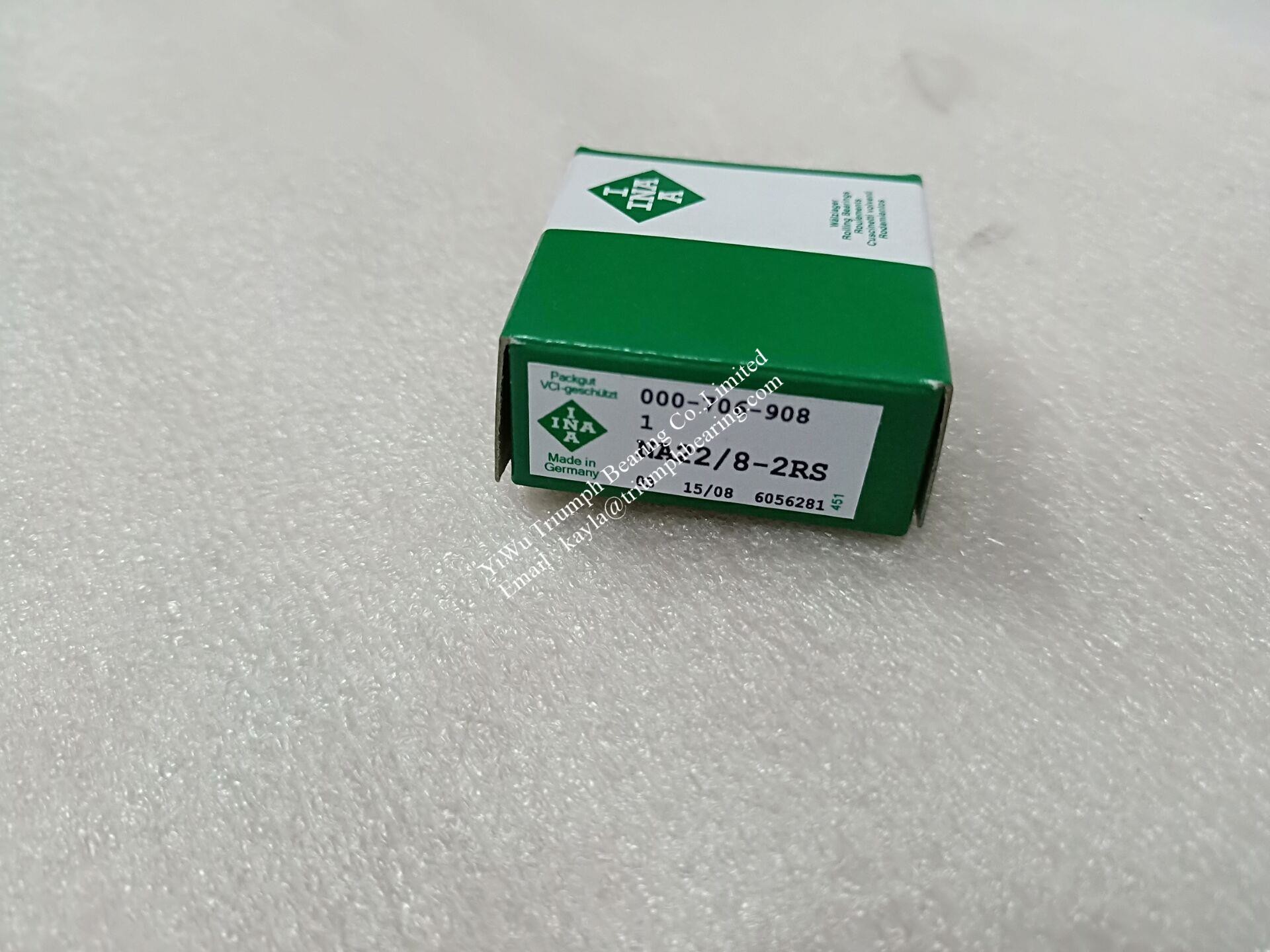

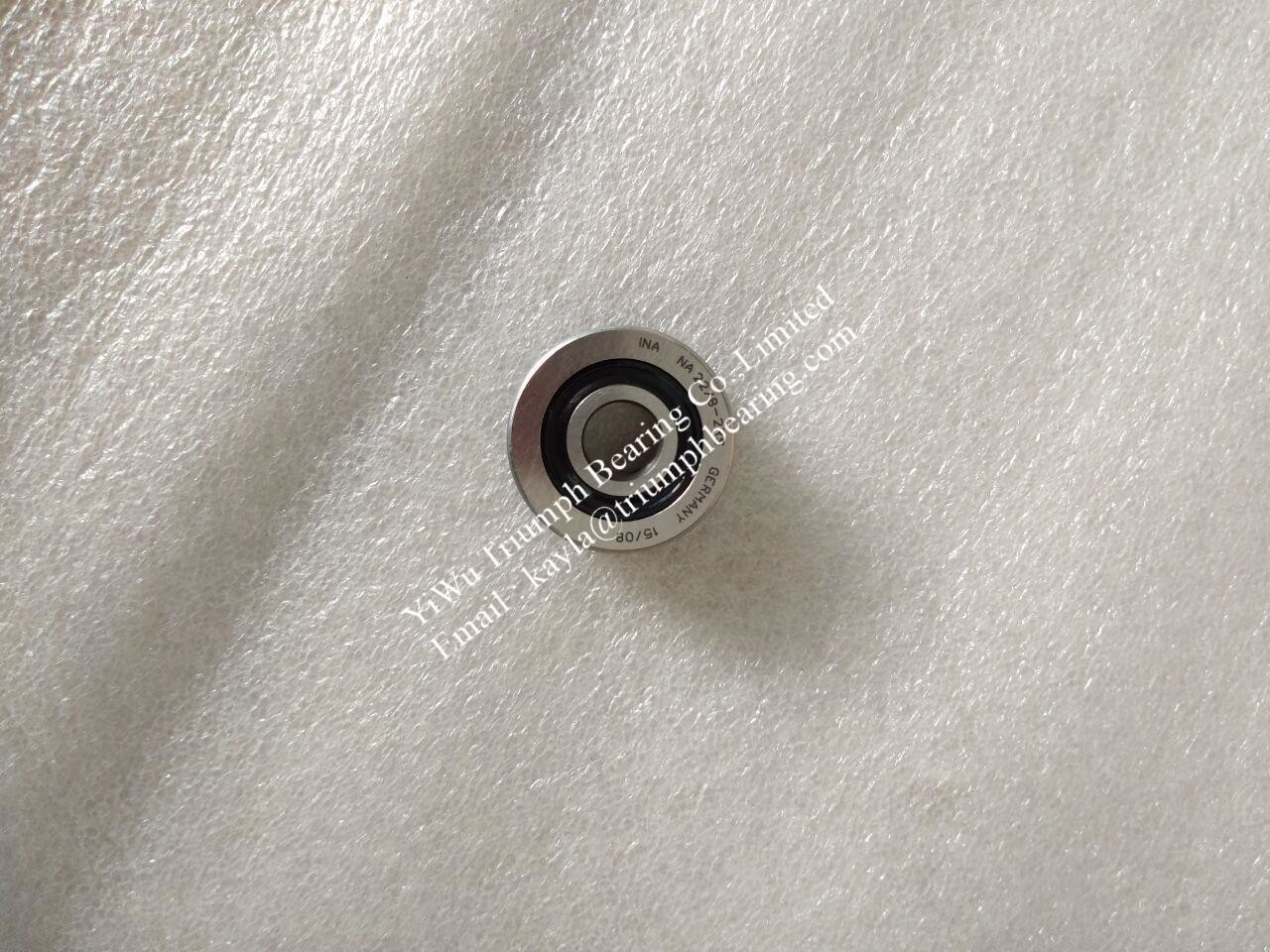

INA Needle roller Bearing NA22/8-2RS
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
内径 d (mm) |
轴承 Type
|
外型尺寸 Dimensions
|
基本额定负荷 Basic Load Rating
|
极限转速Limiting Speed |
|||||||||||
无内圈型号 | 带内圈型号 | 重量 | d | D | F | B | C | D1 | 动Cr | 静Cor | 作为支承滚轮 | 脂润滑 | 重量 | ||
Without IR | With IR | Mass | (Fw) | Dynamic | Static | 动Cw | 静Cor | Grease | Mass | ||||||
(g) | (mm) | (N) | (rpm) | (g) | |||||||||||
6 | RNA22/6.2RS | NA22/6.2RS | 22 | 6 | 19 | 10 | 12 | 11.8 | 16 | 5000 | 4350 | 3050 | 3000 | 18000 | 18 |
RNA22/6.2RSX | NA22/6.2RSX | 22 | 6 | 19 | 10 | 12 | 11.8 | 16 | 5000 | 4350 | 3900 | 3700 | 18000 | 18 | |
8 | RNA22/8.2RS | NA22/8.2RS | 34 | 8 | 24 | 12 | 12 | 11.8 | 18 | 5500 | 5200 | 4800 | 4800 | 14000 | 29 |
RNA22/8.2RSX | NA22/8.2RSX | 34 | 8 | 24 | 12 | 12 | 11.8 | 18 | 5500 | 5200 | 4050 | 4050 | 14000 | 29 | |
10 | RNA2200.2RS | NA2200.2RS | 60 | 10 | 30 | 14 | 14 | 13.8 | 20 | 7600 | 8100 | 7000 | 8000 | 11000 | 52 |
RNA2200.2RSX | NA2200.2RSX | 60 | 10 | 30 | 14 | 14 | 13.8 | 20 | 7600 | 8100 | 6500 | 7050 | 11000 | 52 | |
12 | RNA2201.2RS | NA2201.2RS | 67 | 12 | 32 | 16 | 14 | 13.8 | 22 | 8500 | 9700 | 7500 | 9000 | 9500 | 57 |
RNA2201.2RSX | NA2201.2RSX | 67 | 12 | 32 | 16 | 14 | 13.8 | 22 | 8500 | 9700 | 7050 | 8950 | 9500 | 57 | |
15 | RNA2202.2RS | NA2202.2RS | 75 | 15 | 35 | 20 | 14 | 13.8 | 26 | 9600 | 12000 | 7600 | 9600 | 7000 | 60 |
RNA2202.2RSX | NA2202.2RSX | 75 | 15 | 35 | 20 | 14 | 13.8 | 26 | 9600 | 12000 | 7050 | 9080 | 7000 | 60 | |
17 | RNA2203.2RS | NA2203.2RS | 112 | 17 | 40 | 22 | 16 | 15.8 | 28 | 12000 | 16500 | 9900 | 13800 | 6000 | 94 |
RNA2203.2RSX | NA2203.2RSX | 112 | 17 | 40 | 22 | 16 | 15.8 | 28 | 12000 | 16500 | 9090 | 11800 | 6000 | 94 | |
20 | RNA2204.2RS | NA2204.2RS | 177 | 20 | 47 | 25 | 18 | 17.8 | 33 | 18500 | 21900 | 15200 | 18300 | 4600 | 152 |
RNA2204.2RSX | NA2204.2RSX | 177 | 20 | 47 | 25 | 18 | 17.8 | 33 | 18500 | 21900 | 13500 | 16500 | 4600 | 152 | |
25 | RNA2205.2RS | NA2205.2RS | 209 | 25 | 52 | 30 | 18 | 17.8 | 38 | 20100 | 26000 | 15700 | 20000 | 3500 | 179 |
RNA2205.2RSX | NA2205.2RSX | 209 | 25 | 52 | 30 | 18 | 17.8 | 38 | 20100 | 26000 | 13500 | 18900 | 3500 | 179 | |
30 | RNA2206.2RS | NA2206.2RS | 324 | 30 | 62 | 35 | 20 | 19.8 | 43 | 23000 | 28000 | 18300 | 25500 | 2800 | 284 |
RNA2206.2RSX | NA2206.2RSX | 324 | 30 | 62 | 35 | 20 | 19.8 | 43 | 23000 | 28000 | 17500 | 23500 | 2800 | 284 | |
35 | RNA2207.2RS | NA2207.2RS | 505 | 35 | 72 | 42 | 23 | 22.7 | 50 | 29800 | 46300 | 23000 | 35500 | 2200 | 432 |
RNA2207.2RSX | NA2207.2RSX | 505 | 35 | 72 | 42 | 23 | 22.7 | 50 | 29800 | 46300 | 20500 | 32500 | 2200 | 432 | |
40 | RNA2208.2RS | NA2208.2RS | 628 | 40 | 80 | 48 | 23 | 22.7 | 57 | 38200 | 57700 | 27500 | 40500 | 1700 | 530 |
RNA2208.2RSX | NA2208.2RSX | 628 | 40 | 80 | 48 | 23 | 22.7 | 57 | 38200 | 57700 | 25000 | 38000 | 1700 | 530 | |
45 | RNA2209.2RS | NA2209.2RS | 655 | 45 | 85 | 52 | 23 | 22.7 | 62 | 40300 | 63800 | 28500 | 43000 | 1600 | 545 |
RNA2209.2RSX | NA2209.2RSX | 655 | 45 | 85 | 52 | 23 | 22.7 | 62 | 40300 | 63800 | 26000 | 41000 | 1600 | 545 | |
50 | RNA2210.2RS | NA2210.2RS | 690 | 50 | 90 | 58 | 23 | 22.7 | 68 | 42100 | 66000 | 28000 | 42500 | 1300 | 563 |
RNA2210.2RSX | NA2210.2RSX | 690 | 50 | 90 | 58 | 23 | 22.7 | 68 | 42100 | 66000 | 26000 | 40500 | 1300 | 563 |
外 径 | 轴 承 型 号 | 外 型 尺 寸mm | 基本额定负荷 |
极限 转速3) n1greas≈ min-1 |
|||||||||||
作为支承滚轮 | |||||||||||||||
无 内 圈 | 带 内 圈 | D | d |
F 1) Fw |
B | C | E | r1s | 动 | 静 | 动 | 静 | |||
m m | |||||||||||||||
m m | min | N | |||||||||||||
19 | RNA 22/6.2RS | NA 22/6.2RS | 19 | 6 | 10 | 12 | 11.8 | 0.3 | 0.3 | 5300 | 4650 | 3900 | 3700 | 18000 | |
RNA 22/6.2RS X | NA 22/6.2RS X | 19 | 6 | 10 | 12 | 11.8 | 0.3 | 0.3 | 5300 | 4650 | 3900 | 3700 | 18000 | ||
24 | RNA 22/8.2RS | NA 22/8.2RS | 24 | 8 | 12 | 12 | 11.8 | 0.3 | 0.3 | 5700 | 5400 | 4800 | 4800 | 14000 | |
RNA 22/8.2RS X | NA 22/8.2RS | 24 | 8 | 12 | 12 | 11.8 | 0.3 | 0.3 | 5700 | 5400 | 4800 | 4800 | 14000 | ||
30 | RNA 2200.2RS | NA 2200.2RS | 30 | 10 | 14 | 14 | 13.8 | 0.6 | 0.3 | 7800 | 8300 | 7000 | 8000 | 11000 | |
RNA 2200.2RS X | NA 2200.2RS X | 30 | 10 | 14 | 14 | 13.8 | 0.6 | 0.3 | 7800 | 8300 | 7000 | 8000 | 11000 | ||
32 | RNA 2201.2RS | NA 2201.2RS | 32 | 12 | 16 | 14 | 13.8 | 0.6 | 0.3 | 8700 | 9900 | 7500 | 9000 | 9500 | |
RNA 2201.2RS X | NA 2201.2RS X | 32 | 12 | 16 | 14 | 13.8 | 0.6 | 0.3 | 8700 | 9900 | 7500 | 9000 | 9500 | ||
35 | RNA 2202.2RS | NA 2202.2RS | 35 | 15 | 20 | 14 | 13.8 | 0.6 | 0.3 | 9800 | 12300 | 7600 | 9600 | 7000 | |
RNA 2202.2RS X | NA 2202.2RS X | 35 | 15 | 20 | 14 | 13.8 | 0.6 | 0.3 | 9800 | 12300 | 7600 | 9600 | 7000 | ||
40 | RNA 2203.2RS | NA 2203.2RS | 40 | 17 | 22 | 16 | 15.8 | 1 | 0.3 | 12200 | 16700 | 9900 | 13800 | 6000 | |
RNA 2203.2RS X | NA 2203.2RS X | 40 | 17 | 22 | 16 | 15.8 | 1 | 0.3 | 12200 | 16700 | 9900 | 13800 | 6000 | ||
47 | RNA 2204.2RS | NA 2204.2RS | 47 | 20 | 25 | 18 | 17.8 | 1 | 0.3 | 18900 | 22300 | 15200 | 18300 | 4600 | |
RNA 2204.2RS X | NA 2204.2RS X | 47 | 20 | 25 | 18 | 17.8 | 1 | 0.3 | 18900 | 22300 | 15200 | 18300 | 4600 | ||
52 | RNA 2205.2RS | NA 2205.2RS | 52 | 25 | 30 | 18 | 17.8 | 1 | 0.3 | 21100 | 27000 | 15700 | 20000 | 3500 | |
RNA 2205.2RS X | NA 2205.2RS X | 52 | 25 | 30 | 18 | 17.8 | 1 | 0.3 | 21100 | 27000 | 15700 | 20000 | 3500 | ||
62 | RNA 2206.2RS | NA 2206.2RS | 62 | 30 | 35 | 20 | 19.8 | 1 | 0.3 | 23300 | 32000 | 18300 | 25500 | 2800 | |
RNA 2206.2RS X | NA 2206.2RS X | 62 | 30 | 35 | 20 | 19.8 | 1 | 0.3 | 23300 | 32000 | 18300 | 25500 | 2800 | ||
72 | RNA 2207.2RS | NA 2207.2RS | 72 | 35 | 42 | 23 | 22.7 | 1.1 | 0.6 | 30000 | 46500 | 23000 | 35500 | 2200 | |
RNA 2207.2RS X | NA 2207.2RS X | 72 | 35 | 42 | 23 | 22.7 | 1.1 | 0.6 | 30000 | 46500 | 23000 | 35500 | 2200 | ||
80 | RNA 2208.2RS | NA 2208.2RS | 80 | 40 | 48 | 23 | 22.7 | 1.1 | 0.6 | 38500 | 58000 | 27500 | 40500 | 1700 | |
RNA 2208.2RS X | NA 2208.2RS X | 80 | 40 | 48 | 23 | 22.7 | 1.1 | 0.6 | 38500 | 58000 | 27500 | 40500 | 1700 | ||
85 | RNA 2209.2RS | NA 2209.2RS | 85 | 45 | 52 | 23 | 22.7 | 1.1 | 0.6 | 40500 | 64000 | 28500 | 43000 | 1600 | |
RNA 2209.2RS X | NA 2209.2RS X | 85 | 45 | 52 | 23 | 22.7 | 1.1 | 0.6 | 40500 | 64000 | 28500 | 43000 | 1600 | ||
90 | RNA 2210.2RS | NA 2210.2RS | 90 | 50 | 58 | 23 | 22.7 | 1.1 | 0.6 | 42500 | 70000 | 28000 | 42500 | 1300 | |
RNA 2210.2RS X | NA 2210.2RS X | 90 | 50 | 58 | 23 | 22.7 | 1.1 | 0.6 | 42500 | 70000 | 28000 | 42500 | 1300 |
