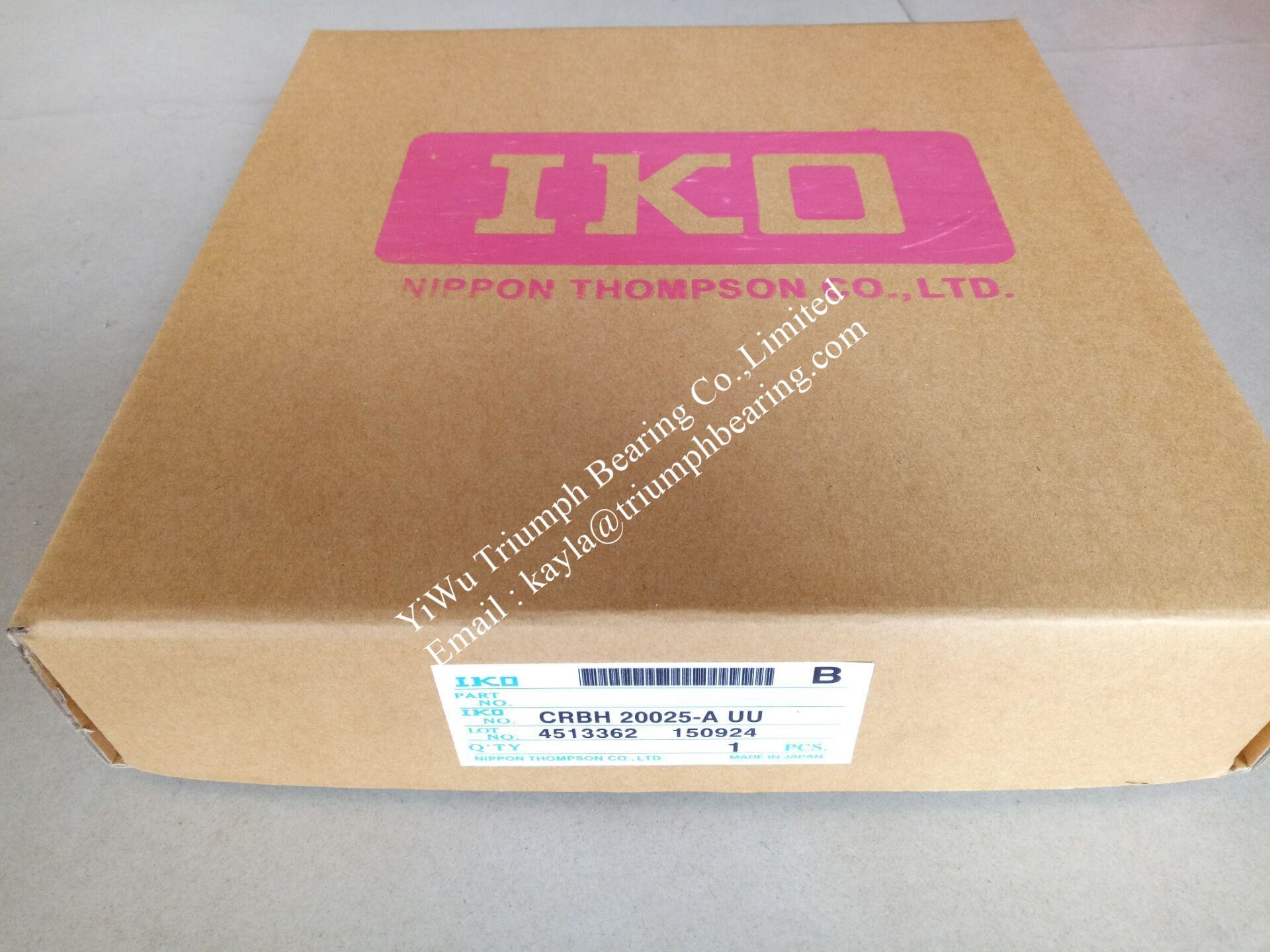

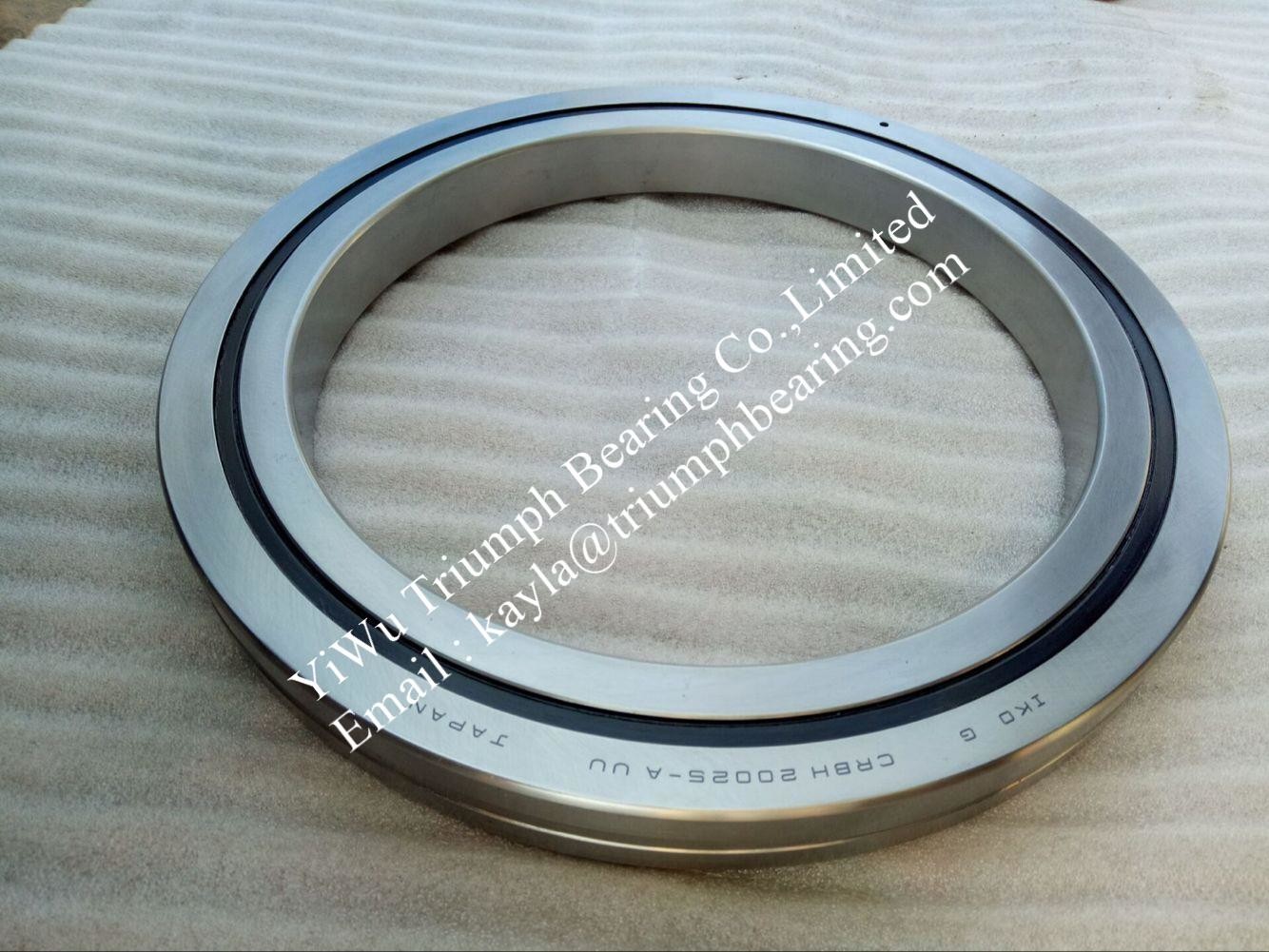

IKO cross roller bearing CRBH 20025-A UU
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
Specifications
CRBH series cross roller bearing
Type | Boundary dimensions (mm) | Basic rated loading | weight | equivalent | |||
Inner diameter | Outer diameter | Width | Radial (KN) | ||||
d | D | B | C | Co | kg | IKO | |
CRBH2008 | 20 | 36 | 8 | 2.91 | 2.43 | 0.04 | CCRBH2008 |
CRBH2508 | 25 | 41 | 8 | 3.12 | 2.81 | 0.05 | CCRBH2508 |
CRBH3010 | 30 | 55 | 10 | 7.35 | 8.36 | 0.12 | CCRBH3010 |
CRBH3510 | 35 | 60 | 10 | 7.9 | 9.13 | 0.13 | CCRBH3510 |
CRBH4010 | 40 | 65 | 10 | 8.33 | 10.6 | 0.15 | CCRBH4010 |
CRBH4510 | 45 | 70 | 10 | 8.86 | 11.3 | 0.16 | CCRBH4510 |
CRBH5013 | 50 | 80 | 13 | 16.7 | 20.9 | 0.27 | CCRBH5013 |
CRBH6013 | 60 | 90 | 13 | 18 | 24.3 | 0.3 | CCRBH6013 |
CRBH7013 | 70 | 100 | 13 | 19.4 | 27.7 | 0.35 | CCRBH7013 |
CRBH8016 | 80 | 120 | 16 | 30.1 | 42.1 | 0.7 | CCRBH8016 |
CRBH9016 | 90 | 130 | 16 | 31.4 | 45.3 | 0.75 | CCRBH9016 |
CRBH10020 | 100 | 150 | 20 | 33.1 | 50.9 | 1.45 | CCRBH10020 |
CRBH11020 | 110 | 160 | 20 | 34 | 54 | 1.56 | CCRBH11020 |
CRBH12025 | 120 | 180 | 25 | 66.9 | 100 | 2.62 | CCRBH12025 |
CRBH13025 | 130 | 190 | 25 | 69.5 | 107 | 2.82 | CCRBH13025 |
CRBH14025 | 140 | 200 | 25 | 74.8 | 121 | 2.96 | CCRBH14025 |
CRBH15025 | 150 | 210 | 25 | 76.8 | 128 | 3.16 | CCRBH15025 |
CRBH20025 | 200 | 260 | 25 | 84.2 | 157 | 4 | CCRBH20025 |
CRBH25025 | 250 | 310 | 25 | 69.3 | 150 | 5 | CCRBH25025 |
Note 2: in the high-precision, please use the inner ring rotation way.
CRBH258 A, CRBH 258 A UU T1 Cross Roller Bearing belong to IKO Model CRBH series cross roller bearing(with separator). It's ultra-thin type, has integrated inner & outer ring, need housing and flange for fixing during installation.
Features:
CRBH series cross roller bearing has stable rotational precisioin and torque, suited for limited space, and where inner ring and outer ring rotation required.
A means open type, A UU means sealed on both sides.
Other CRBH cross roller bearing models
Open Type | Sealed Type | d (mm) | D (mm) | B (mm) | C (kN) | C0 (kN) | Mass (kg) |
CRBH 208 A | CRBH 208 A UU | 20 | 36 | 8 | 2.91 | 2.43 | 0.04 |
CRBH 258 A | CRBH 258 A UU | 25 | 41 | 8 | 3.12 | 2.81 | 0.05 |
CRBH 3010 A | CRBH 3010 A UU | 30 | 55 | 10 | 7.6 | 8.37 | 0.12 |
CRBH 3510 A | CRBH 3510 A UU | 35 | 60 | 10 | 7.9 | 9.13 | 0.13 |
CRBH 4010 A | CRBH 4010 A UU | 40 | 65 | 10 | 8.61 | 10.6 | 0.15 |
CRBH 4510 A | CRBH 4510 A UU | 45 | 70 | 10 | 8.86 | 11.3 | 0.16 |
CRBH 5013 A | CRBH 5013 A UU | 50 | 80 | 13 | 17.3 | 20.9 | 0.29 |
CRBH 6013 A | CRBH 6013 A UU | 60 | 90 | 13 | 18.8 | 24.3 | 0.33 |
CRBH 7013 A | CRBH 7013 A UU | 70 | 100 | 13 | 20.1 | 27.7 | 0.38 |
CRBH 8016 A | CRBH 8016 A UU | 80 | 120 | 16 | 32.1 | 43.4 | 0.74 |
CRBH 9016 A | CRBH 9016 A UU | 90 | 130 | 16 | 33.1 | 46.8 | 0.81 |
CRBH 10020 A | CRBH 10020 A UU | 100 | 150 | 20 | 50.9 | 72.2 | 1.45 |
CRBH 11020 A | CRBH 11020 A UU | 110 | 160 | 20 | 52.4 | 77.4 | 1.56 |
CRBH 12025 A | CRBH 12025 A UU | 120 | 180 | 25 | 73.4 | 108 | 2.62 |
CRBH 13025 A | CRBH 13025 A UU | 130 | 190 | 25 | 75.9 | 115 | 2.82 |
CRBH 14025 A | CRBH 14025 A UU | 140 | 200 | 25 | 81.9 | 130 | 2.96 |
CRBH 15025 A | CRBH 15025 A UU | 150 | 210 | 25 | 84.3 | 138 | 3.16 |
CRBH 20025 A | CRBH 20025 A UU | 200 | 260 | 25 | 92.3 | 169 | 4 |
CRBH 25025 A | CRBH 25025 A UU | 250 | 310 | 25 | 102 | 207 | 4.97 |
To learn more about our company or get the Installation Instructions of CRBH 258 A UU T1 crossed roller bearing regarding the installation size, weight, basic dynamic load rating, load, limiting speed, and clearance, please contact us. Drawing and sample of CRBH 258 A UU T1 crossed roller bearingare available upon request.
