xProduct Details
Product Description
Specifications

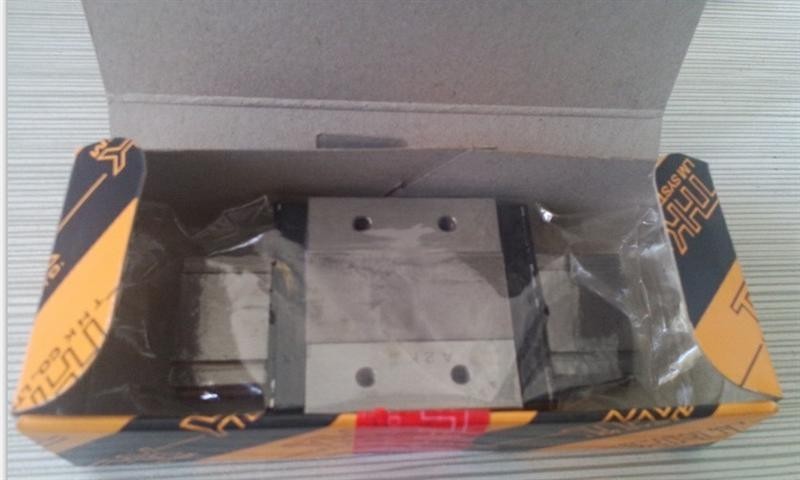

Bearing:Linear slide block bearing
As a professional linear motion products manufacturer with many years expriences,we could offer many kinds of linear motion ball slide block bearings with
good quality but more competitive price in this field.
1.Complete sliding units system with high accurrfangce and can be moved without deflection
2.Long life use.
3..Prompt delivery and good service.
4.Stocking feet and low batch wholesale.
5.ISO9001:2000.
Model sizes and tenique data sheet for your reference:
sklslide block bearings
| Model No. | Outer dimensions | Basic load rating | |||||||
| Height | Width | Lenght | Radial | Reverse radial | Side | ||||
| H | W | L |
Dynamic rating C |
Static rating C0 |
Dynamic rating CL |
Static rating C0L |
Dynamic rating CT |
Static rating C0T |
|
| mm | mm | mm | kN | kN | kN | kN | kN | kN | |
| HSR 15R(Ct) | 28 | 34 | 56.6 | 8.33 | 13.5 | 8.33 | 13.5 | 8.33 | 13.5 |
| HSR 20R(Ct) | 30 | 44 | 74 | 13.8 | 23.8 | 13.8 | 23.8 | 13.8 | 23.8 |
| HSR 25R(Ct) | 40 | 48 | 83.1 | 19.9 | 34.4 | 19.9 | 34.4 | 19.9 | 34.4 |
| HSR 30R(Ct) | 45 | 60 | 98 | 28 | 46.8 | 28 | 46.8 | 28 | 46.8 |
| HSR 35R(Ct) | 55 | 70 | 109.4 | 37.3 | 61.1 | 37.3 | 61.1 | 37.3 | 61.1 |
slide block bearings feature:
1.low cost
2.linear motion system
3.small load
4.high-precision smooth movement
5.HS code:8483 3000
Looking forward to your inquiry.
