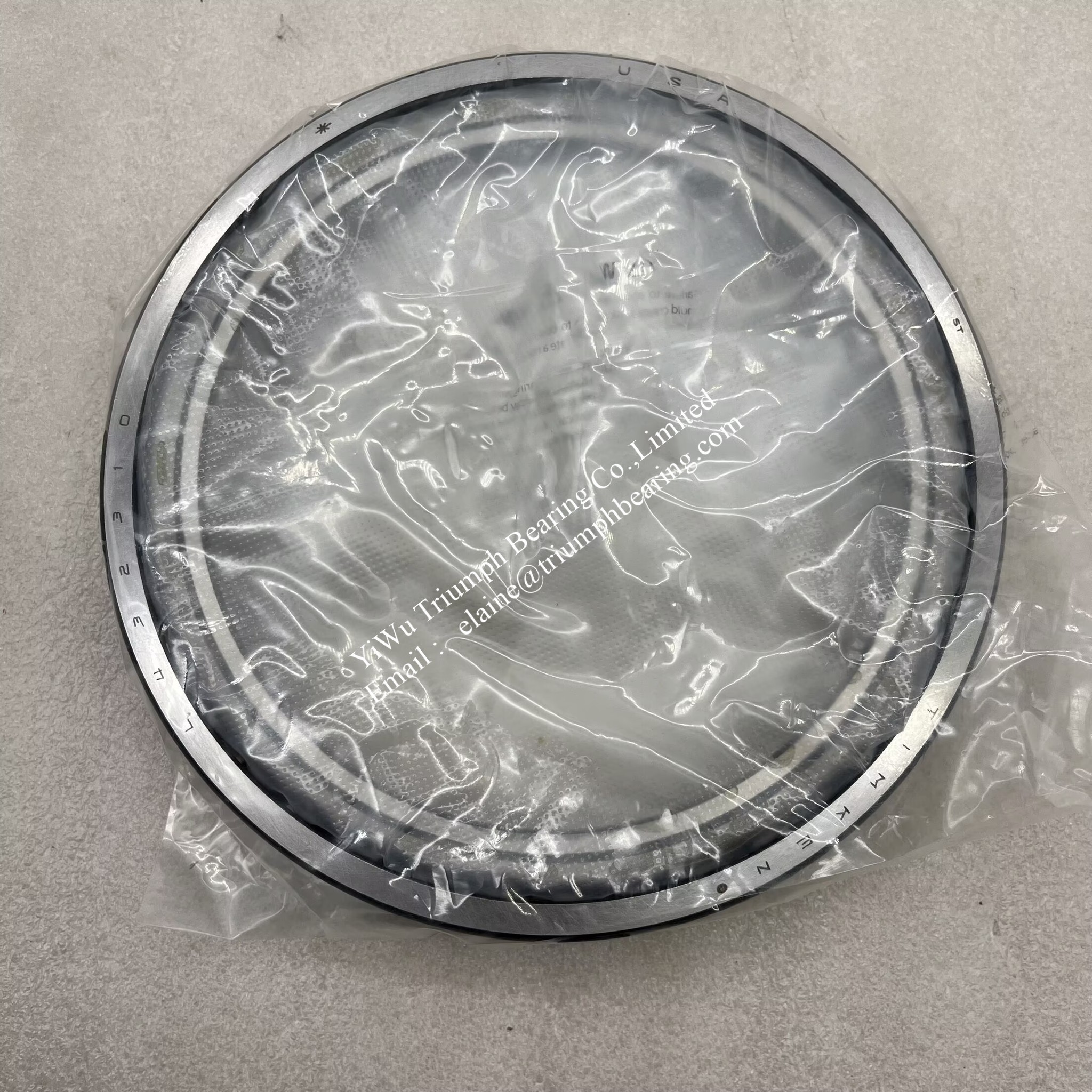

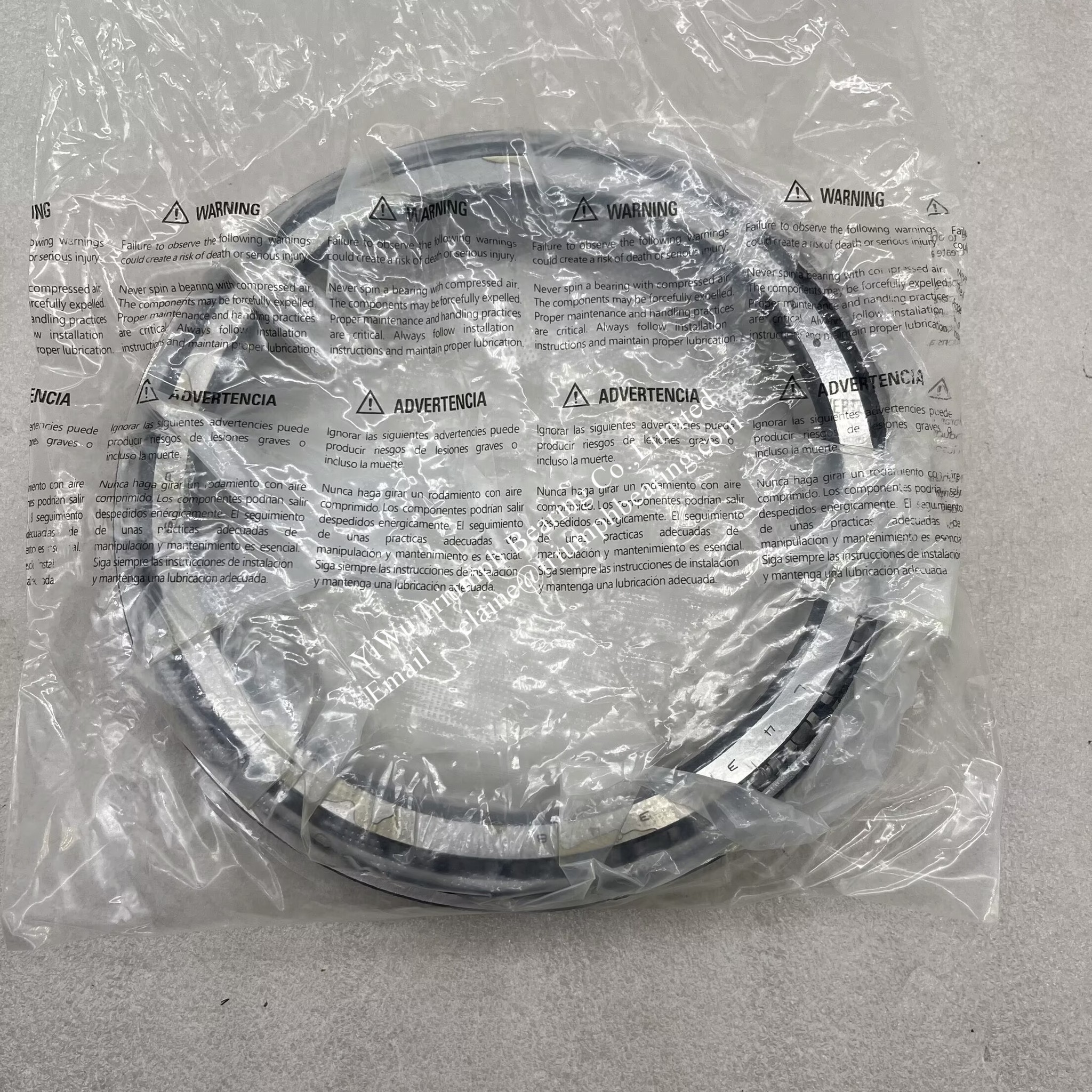

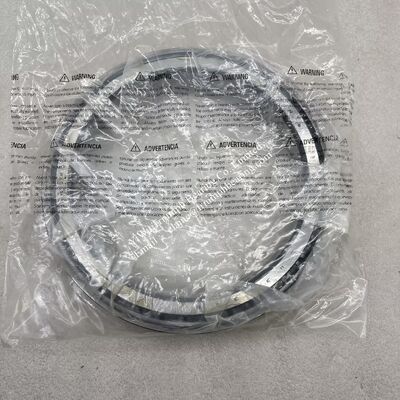

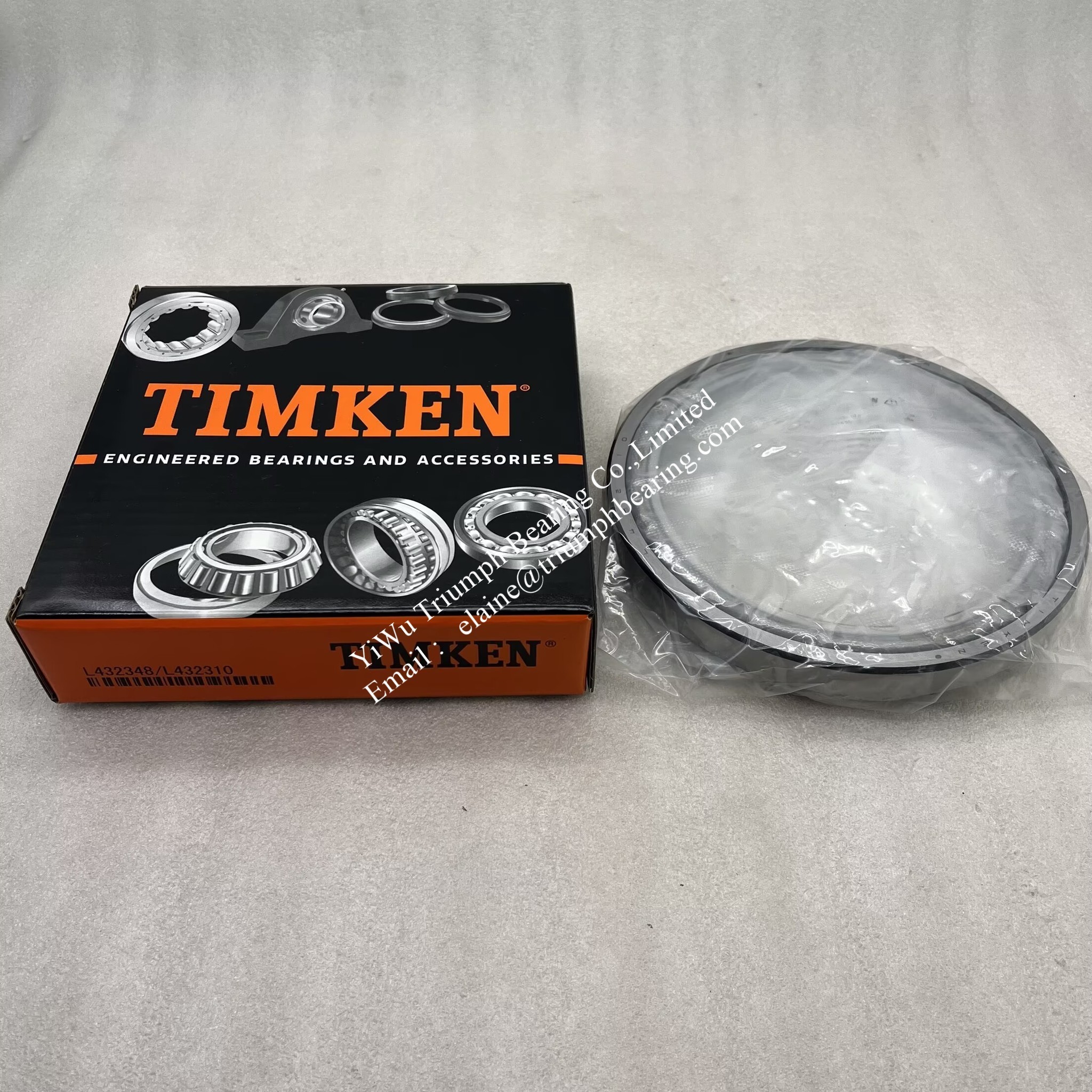

TIMKEN Taper Roller Bearing L432348/L432310

  • TIMKEN Taper Roller Bearing L432348/L432310
  • TIMKEN Taper Roller Bearing L432348/L432310
  • TIMKEN Taper Roller Bearing L432348/L432310
Place of Origin USA
Brand Name TIMKEN
Model Number L432348/L432310
Minimum Order Quantity 1
Price FOB
Packaging Details Carton Box
Delivery Time within one day
Payment Terms T/T In advance
Supply Ability 5000PCS
Product Details
Leave a Message
Product Description

Key Dimensions

Cone Part Number

 L432348

Cup Part Number

 L432310

Bore (d)

 6.25 in158.75 mm

O.D. (D)

 8.0938 in205.583 mm

Width (T)

 0.9375 in23.813 mm
Dynamic Radial Load Rating - 1M Revs (C1)1 33000 lbf147000 N
Dynamic Radial Load Rating - 90M Revs (C90) 2 8560 lbf38100 N
e Factor3 0.37
K Factor4 1.57
Y Factor 5 1.61

Other Dimensions

Weight

 4.1 lb1.90 Kg

Inner Ring Width (B)

 0.9375 in23.813 mm

Outer Ring Width (C)

 0.7188 in18.258 mm
Effective Center Location6 0.37 in9.4 mm
Max Shaft Fillet Radius7 0.19 in4.800 mm
Max Housing Fillet Radius8 0.06 in1.52 mm

Shaft Backing Shoulder Diameter - Frontface (da)

 6.54 in166 mm

Shaft Backing Shoulder Diameter - Backface (db)

 6.85 in174 mm

Housing Backing Shoulder Diameter - Frontface (Da)

 7.87 in198.9 mm

Housing Backing Shoulder Diameter - Backface (Db)

 7.68 in195.07 mm

Cage Location Relative to Backface (Aa)

 0.05 in1.3 mm

Cage Location Relative to Frontface (Ab)

 0.09 in2.3 mm

Ratings

Dynamic Axial Rating - 90M Revs (Ca90)9 5470 lbf24300 N

Static Radial Load Rating (C0)

 63000 lbf280000 N

Factors

G1 Factor

 320

G2 Factor

 177
Geometry Factor (Cg)10 0.168
  • 1 Based on 1 x 106 revolutions L10 life, for the ISO life calculation method.
  • 2 Based on 90 x 106 revolutions L10 life, for The Timken Company life calculation method. C90 and Ca90 are radial and thrust values.
  • 3 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
  • 4 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
  • 5 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
  • 6 Negative value indicates effective center inside cone backface.
  • 7 These maximum fillet radii will be cleared by the bearing corners.
  • 8 These maximum fillet radii will be cleared by the bearing corners.
  • 9 Based on 90 x 106 revolutions L10 life, for The Timken Company life calculation method. C90 and Ca90 are radial and thrust values for a single-row, C90(2) is the two-row radial value.
  • 10 Geometry constant for Lubrication Life Adjustment Factor a3l.
