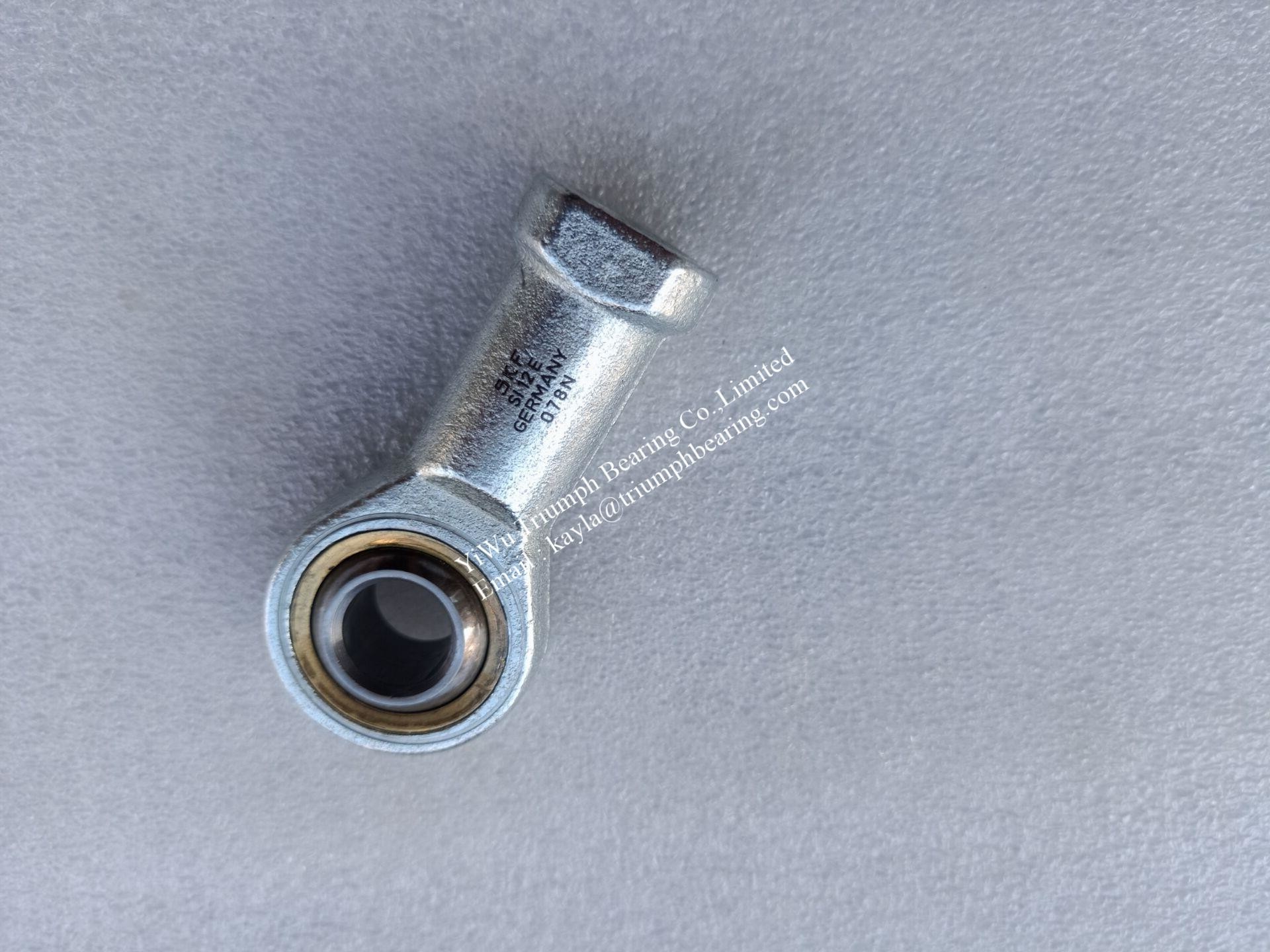

Rod End Bearing SI12 E , SI12E

  • Rod End Bearing SI12 E , SI12E
  • Rod End Bearing SI12 E , SI12E
Model Number SI12 E , SI12E
Minimum Order Quantity 1PCS
Price FOB
Packaging Details Carton Box
Delivery Time within one day
Payment Terms T/T In advance
Supply Ability 5000PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

Series and bore diameter range:



SI…E 5～12

SI…ES 15～80





Sliding contact surfaces:

Steel/Steel

Permissible operating temperature range:

－50℃～＋150℃

Design characteristics:Rod end with male or female thread is made up of a rod end and a radial spherical plain bearing of sreies GE…E or GE…ES,rod end of steel and zinc coated；Can be relubricated via a nipple or a hole in the rod end, except those of the E design.

　　

Rod End Bearing SI12 E , SI12E 0
　　

轴

Bearing

number



Dimensions mm



Load Ratings kN



Weight

≈kg
d B dK

C1

max

d2



G

6H

 h1

l3

min

l4



l5



 l7 W

d3



d4



rs

min

α˚

≈

动载荷

Dynamic

静载荷

Static
SI5E1) 5 6 10 4.5 21 M5 30 11 40.5 5 11.5 10 10 13 0.3 13 3.4 8.1 0.023
SI6E1) 6 6 10 4.5 21 M6 30 11 40.5 5 11.5 11 11 13 0.3 13 3.4 8.1 0.023
SI8E1) 8 8 13 6.5 24 M8 36 15 48 5 13 13 13 16 0.3 15 5.5 12.9 0.040
SI10E1) 10 9 16 7.5 29 M10 43 20 57.5 6.5 15 16 16 19 0.3 12 8.1 17.6 0.065
SI12E1) 12 10 18 8.5 34 M12 50 23 67 7 18 18 19 22 0.3 10 10 24.5 0.108
SI15ES2) 15 12 22 10.5 40 M14 61 30 81 8 21 21 21 26 0.3 8 16 36 0.169
SI17ES2) 17 14 25 11.5 46 M16 67 34 90 10 24 27 25 29 0.3 10 21 45 0.235
SI20ES2) 20 16 29 13.5 53 M20×1.5 77 40 103.5 10 25.5 30 28 34 0.3 9 30 60 0.335
SI25ES 25 20 35.5 18 64 M24×2 94 48 126 12 33 36 35 42 0.6 7 48 83 0.665
SI30ES 30 22 40.7 20 73 M30×2 110 56 146.5 15 37.5 46 42 50 0.6 6 62 110 1.05
SI35ES 35 25 47 22 82 M36×3 125 60 166 15 40 55 48 58 0.6 6 79 146 1.50
SI40ES 40 28 53 24 92 M39×3 142 65 188 18 47 60 52 65 0.6 7 99 180 2.05
SIS40ES 40 28 53 24 92 M42×3 142 65 188 18 47 55 52 65 0.6 7 99 180 1.94
SI45ES 45 32 60 28 102 M42×3 145 65 196 20 52 65 58 70 0.6 7 127 240 2.72
SIS45ES 45 32 60 27 102 M45×3 145 65 196 20 52 60 58 70 0.6 7 127 240 2.61
SI50ES 50 35 66 31 112 M45×3 160 68 216 20 57 70 62 75 0.6 6 156 290 3.48
SIS50ES 50 35 66 31 112 M52×3 160 69 216 20 57 65 62 75 0.6 6 156 260 3.24
SI60ES 60 44 80 39 135 M52×3 175 70 242.5 20 68.5 80 70 88 1 6 245 450 5.55
SIS60ES 60 44 80 39 135 M60×4 175 73 242.5 20 68.5 75 70 88 1 6 245 300 4.99
SI70ES 70 49 92 43 160 M56×4 200 80 280 20 81 85 80 98 1 6 313 610 8.72
SIS70ES 70 49 92 42 160 M72×4 200 80 280 20 81 80 85 98 1 6 313 470 8.33
SI80ES 80 55 105 48 180 M64×4 230 85 320 25 91 95 95 110 1 6 400 750 12.9
SIS80ES 80 55 105 47 180 M80×4 230 85 320 25 91 100 95 110 1 6 400 600 11.7


Tags:

spherical plain bearing
