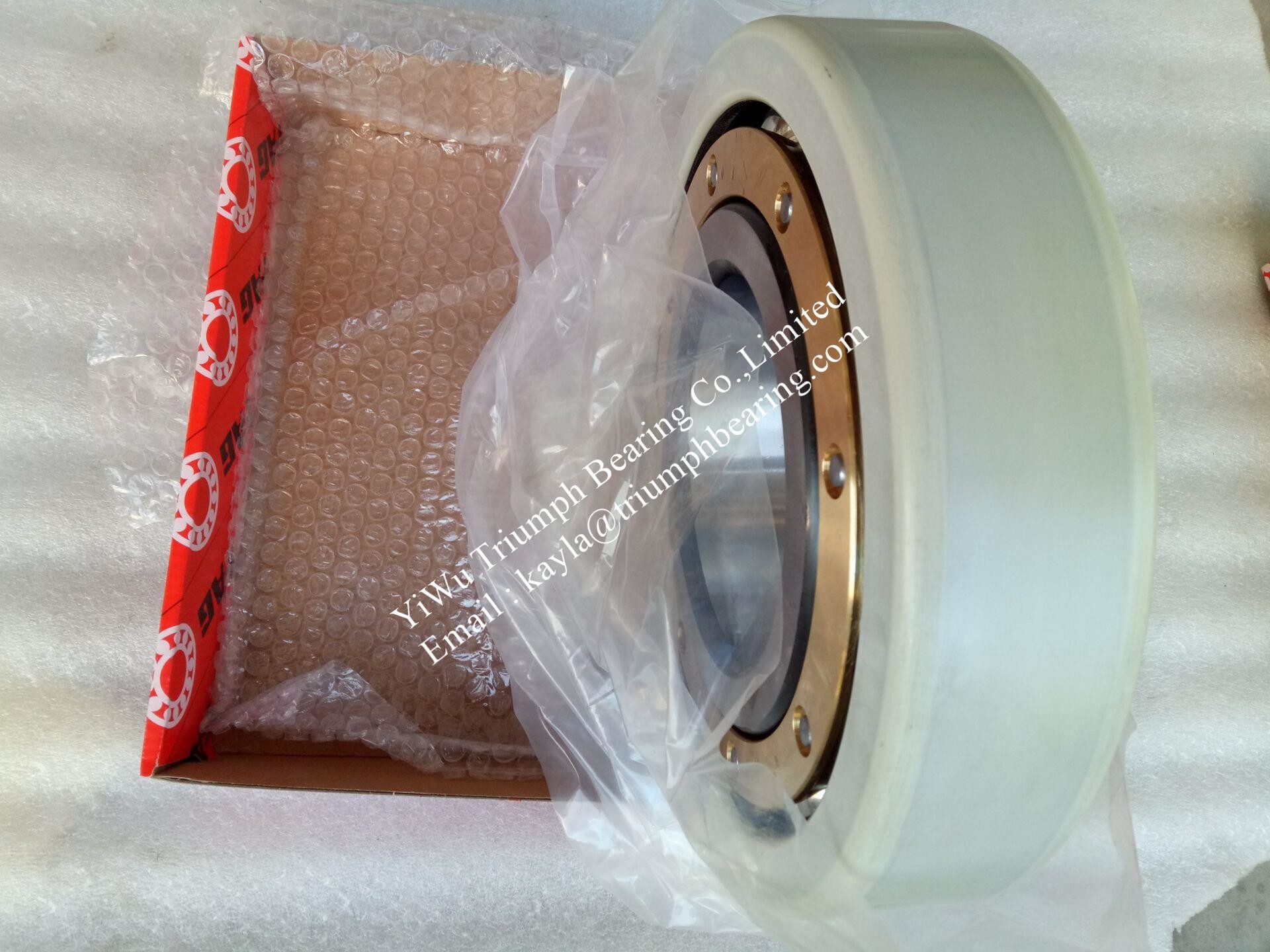

FAG Insulated Bearing , Insocoat Bearing 6326M.J20A.C4
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
Product properties
- Availability0 pcs
- BrandFAG
- Item Number6326-M-C4-J20A FAG
- Technical details (M-C4-J20A)M=Solid Brass Cage, Ball-Guided. C4=Bearing Internal Clearance Greater Than C3. J20A=(Segment Precision, Code 17)=Bearings Of Current-Isolated Design, Replaces Z76.
- CategoryDeep Groove Ball Bearings Single Row
- Inner (d) MM130
- Outer (D) MM280
- Width (B) MM58
- Weight (kg)17.40
- Manufacturer Part Number (MPN)6326-M-C4-J20A
- BoreC - Cylindrical Bore
- SealNo Seal
- Cage TypeM - Brass Cage
- External ModificationNo Pairing
- Radial Internal PlayC4 Internal Play (Higher than C3)
- Precision17 - Current Isolated Design
- LubricationStandard Lubrication
- Heat StabilizationNo Heat Stabilization - Temperatures up to 120°C
- Special TreatmentNo Special Treatment
6311C4F1–J20AA bearing,6217.C3.J20AA 6218.C3.J20AA 6222.C3.J20AA 6311.C3.J20AA 6312.C3.J20AA 6313.C3.J20AA 6314.C3.J20AA 6315.C3.J20AA 6316.C3.J20AA 6317.C3.J20AA 6318.C3.J20AA 6319.C3.J20AA 6320.C3.J20AA 6322.C3.J20AA 6324.C3.J20AA 6326-M.C4.J20A 6326-M.C5.J20A 6326.C3.J20AA HC6322.C3 HC6326M.C3 HC6330M.C3
Part Number | d mm | D | B | D1 | d1 mm | ||
mm | mm | mm | da max mm | da min mm | |||
6217.C3.J20AA | 85 | 150 | 28 | 129.7 | 106.6 | 139 | 96 |
6218.C3.J20AA | 90 | 160 | 30 | 139.7 | 112.6 | 149 | 101 |
6222.C3.J20AA | 110 | 200 | 38 | 171.6 | 138.5 | 188 | 122 |
6311.C3.J20AA | 55 | 120 | 29 | 100.9 | 75.5 | 109 | 66 |
6312.C3.J20AA | 60 | 130 | 31 | 108.4 | 81.6 | 118 | 72 |
6313.C3.J20AA | 65 | 140 | 33 | 117.5 | 88.6 | 128 | 77 |
6314.C3.J20AA | 70 | 150 | 35 | 126.3 | 95.1 | 138 | 82 |
6315.C3.J20AA | 75 | 160 | 37 | 133.2 | 101.8 | 148 | 87 |
6316.C3.J20AA | 80 | 170 | 39 | 141.8 | 108.6 | 158 | 92 |
6317.C3.J20AA | 85 | 180 | 41 | 151.6 | 114.4 | 166 | 99 |
6318.C3.J20AA | 90 | 190 | 43 | 157.1 | 123.8 | 176 | 104 |
6319.C3.J20AA | 95 | 200 | 45 | 166.9 | 129.1 | 186 | 109 |
6320.C3.J20AA | 100 | 215 | 47 | 179 | 138.6 | 201 | 114 |
6322.C3.J20AA | 110 | 240 | 50 | 197.4 | 153.4 | 226 | 124 |
6324.C3.J20AA | 120 | 260 | 55 | 214.9 | 165.1 | 246 | 134 |
6326-M.C4.J20A | 130 | 280 | 58 | 231.2 | 178.9 | 263 | 147 |
6326-M.C5.J20A | 130 | 280 | 58 | 231.2 | 178.9 | 263 | 147 |
6326.C3.J20AA | 130 | 280 | 58 | 231.2 | 178.9 | 263 | 147 |
HC6322.C3 | 110 | 240 | 50 | 197.4 | 153.4 | 226 | 124 |
HC6326M.C3 | 130 | 280 | 58 | 231.2 | 178.9 | 263 | 147 |
HC6330M.C3 | 150 | 320 | 65 | 167 | 205.6 | 303 | 167 |
Product properties
- Availability0 pcs
- BrandFAG
- Item Number6326-M-C4-J20A FAG
- Technical details (M-C4-J20A)M=Solid Brass Cage, Ball-Guided. C4=Bearing Internal Clearance Greater Than C3. J20A=(Segment Precision, Code 17)=Bearings Of Current-Isolated Design, Replaces Z76.
- CategoryDeep Groove Ball Bearings Single Row
- Inner (d) MM130
- Outer (D) MM280
- Width (B) MM58
- Weight (kg)17.40
- Manufacturer Part Number (MPN)6326-M-C4-J20A
- BoreC - Cylindrical Bore
- SealNo Seal
- Cage TypeM - Brass Cage
- External ModificationNo Pairing
- Radial Internal PlayC4 Internal Play (Higher than C3)
- Precision17 - Current Isolated Design
- LubricationStandard Lubrication
- Heat StabilizationNo Heat Stabilization - Temperatures up to 120°C
- Special TreatmentNo Special Treatment
6311C4F1–J20AA bearing,6217.C3.J20AA 6218.C3.J20AA 6222.C3.J20AA 6311.C3.J20AA 6312.C3.J20AA 6313.C3.J20AA 6314.C3.J20AA 6315.C3.J20AA 6316.C3.J20AA 6317.C3.J20AA 6318.C3.J20AA 6319.C3.J20AA 6320.C3.J20AA 6322.C3.J20AA 6324.C3.J20AA 6326-M.C4.J20A 6326-M.C5.J20A 6326.C3.J20AA HC6322.C3 HC6326M.C3 HC6330M.C3
Part Number | d mm | D | B | D1 | d1 mm | ||
mm | mm | mm | da max mm | da min mm | |||
6217.C3.J20AA | 85 | 150 | 28 | 129.7 | 106.6 | 139 | 96 |
6218.C3.J20AA | 90 | 160 | 30 | 139.7 | 112.6 | 149 | 101 |
6222.C3.J20AA | 110 | 200 | 38 | 171.6 | 138.5 | 188 | 122 |
6311.C3.J20AA | 55 | 120 | 29 | 100.9 | 75.5 | 109 | 66 |
6312.C3.J20AA | 60 | 130 | 31 | 108.4 | 81.6 | 118 | 72 |
6313.C3.J20AA | 65 | 140 | 33 | 117.5 | 88.6 | 128 | 77 |
6314.C3.J20AA | 70 | 150 | 35 | 126.3 | 95.1 | 138 | 82 |
6315.C3.J20AA | 75 | 160 | 37 | 133.2 | 101.8 | 148 | 87 |
6316.C3.J20AA | 80 | 170 | 39 | 141.8 | 108.6 | 158 | 92 |
6317.C3.J20AA | 85 | 180 | 41 | 151.6 | 114.4 | 166 | 99 |
6318.C3.J20AA | 90 | 190 | 43 | 157.1 | 123.8 | 176 | 104 |
6319.C3.J20AA | 95 | 200 | 45 | 166.9 | 129.1 | 186 | 109 |
6320.C3.J20AA | 100 | 215 | 47 | 179 | 138.6 | 201 | 114 |
6322.C3.J20AA | 110 | 240 | 50 | 197.4 | 153.4 | 226 | 124 |
6324.C3.J20AA | 120 | 260 | 55 | 214.9 | 165.1 | 246 | 134 |
6326-M.C4.J20A | 130 | 280 | 58 | 231.2 | 178.9 | 263 | 147 |
6326-M.C5.J20A | 130 | 280 | 58 | 231.2 | 178.9 | 263 | 147 |
6326.C3.J20AA | 130 | 280 | 58 | 231.2 | 178.9 | 263 | 147 |
HC6322.C3 | 110 | 240 | 50 | 197.4 | 153.4 | 226 | 124 |
HC6326M.C3 | 130 | 280 | 58 | 231.2 | 178.9 | 263 | 147 |
HC6330M.C3 | 150 | 320 | 65 | 167 | 205.6 | 303 | 167 |
