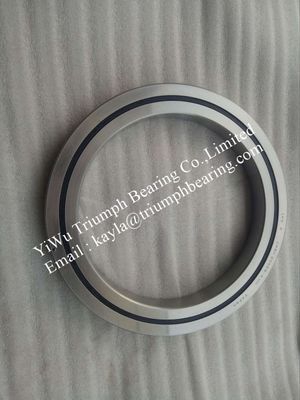

CRBH series cross roller bearing CRBH 20025-A UU

  • CRBH series cross roller bearing CRBH 20025-A UU
  • CRBH series cross roller bearing CRBH 20025-A UU
  • CRBH series cross roller bearing CRBH 20025-A UU
  • CRBH series cross roller bearing CRBH 20025-A UU
  • CRBH series cross roller bearing CRBH 20025-A UU
Place of Origin Japan
Brand Name IKO
Model Number CRBH 20025-A UU
Minimum Order Quantity 1PCS
Price FOB
Packaging Details Carton Box
Delivery Time within one day
Payment Terms T/T In advance
Supply Ability 5000PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

CRBH series cross roller bearing CRBH 20025-A UU 0

CRBH series cross roller bearing CRBH 20025-A UU 1

CRBH series cross roller bearing CRBH 20025-A UU 2

CRBH series cross roller bearing CRBH 20025-A UU 3





Specifications





CRBH series cross roller bearing


Type Boundary dimensions (mm) Basic rated loading weight equivalent
Inner diameter Outer diameter Width Radial (KN)
d D B C Co kg IKO
CRBH2008 20 36 8 2.91 2.43 0.04 CCRBH2008
CRBH2508 25 41 8 3.12 2.81 0.05 CCRBH2508
CRBH3010 30 55 10 7.35 8.36 0.12 CCRBH3010
CRBH3510 35 60 10 7.9 9.13 0.13 CCRBH3510
CRBH4010 40 65 10 8.33 10.6 0.15 CCRBH4010
CRBH4510 45 70 10 8.86 11.3 0.16 CCRBH4510
CRBH5013 50 80 13 16.7 20.9 0.27 CCRBH5013
CRBH6013 60 90 13 18 24.3 0.3 CCRBH6013
CRBH7013 70 100 13 19.4 27.7 0.35 CCRBH7013
CRBH8016 80 120 16 30.1 42.1 0.7 CCRBH8016
CRBH9016 90 130 16 31.4 45.3 0.75 CCRBH9016
CRBH10020 100 150 20 33.1 50.9 1.45 CCRBH10020
CRBH11020 110 160 20 34 54 1.56 CCRBH11020
CRBH12025 120 180 25 66.9 100 2.62 CCRBH12025
CRBH13025 130 190 25 69.5 107 2.82 CCRBH13025
CRBH14025 140 200 25 74.8 121 2.96 CCRBH14025
CRBH15025 150 210 25 76.8 128 3.16 CCRBH15025
CRBH20025 200 260 25 84.2 157 4 CCRBH20025
CRBH25025 250 310 25 69.3 150 5 CCRBH25025
Note 1: nominal model with seal ring is CRBH***UU
Note 2: in the high-precision, please use the inner ring rotation way.



CRBH258 A, CRBH 258 A UU T1 Cross Roller Bearing belong to IKO Model CRBH series cross roller bearing(with separator). It's ultra-thin type, has integrated inner & outer ring, need housing and flange for fixing during installation.

Features:
CRBH series cross roller bearing has stable rotational precisioin and torque, suited for limited space, and where inner ring and outer ring rotation required.


A means open type, A UU means sealed on both sides.

Other CRBH cross roller bearing models
Open Type Sealed Type d (mm) D (mm) B (mm) C (kN) C0 (kN) Mass (kg)
CRBH 208 A CRBH 208 A UU 20 36 8 2.91 2.43 0.04
CRBH 258 A CRBH 258 A UU 25 41 8 3.12 2.81 0.05
CRBH 3010 A CRBH 3010 A UU 30 55 10 7.6 8.37 0.12
CRBH 3510 A CRBH 3510 A UU 35 60 10 7.9 9.13 0.13
CRBH 4010 A CRBH 4010 A UU 40 65 10 8.61 10.6 0.15
CRBH 4510 A CRBH 4510 A UU 45 70 10 8.86 11.3 0.16
CRBH 5013 A CRBH 5013 A UU 50 80 13 17.3 20.9 0.29
CRBH 6013 A CRBH 6013 A UU 60 90 13 18.8 24.3 0.33
CRBH 7013 A CRBH 7013 A UU 70 100 13 20.1 27.7 0.38
CRBH 8016 A CRBH 8016 A UU 80 120 16 32.1 43.4 0.74
CRBH 9016 A CRBH 9016 A UU 90 130 16 33.1 46.8 0.81
CRBH 10020 A CRBH 10020 A UU 100 150 20 50.9 72.2 1.45
CRBH 11020 A CRBH 11020 A UU 110 160 20 52.4 77.4 1.56
CRBH 12025 A CRBH 12025 A UU 120 180 25 73.4 108 2.62
CRBH 13025 A CRBH 13025 A UU 130 190 25 75.9 115 2.82
CRBH 14025 A CRBH 14025 A UU 140 200 25 81.9 130 2.96
CRBH 15025 A CRBH 15025 A UU 150 210 25 84.3 138 3.16
CRBH 20025 A CRBH 20025 A UU 200 260 25 92.3 169 4
CRBH 25025 A CRBH 25025 A UU 250 310 25 102 207 4.97

To learn more about our company or get the Installation Instructions of CRBH 258 A UU T1 crossed roller bearing regarding the installation size, weight, basic dynamic load rating, load, limiting speed, and clearance, please contact us. Drawing and sample of CRBH 258 A UU T1 crossed roller bearingare available upon request.
