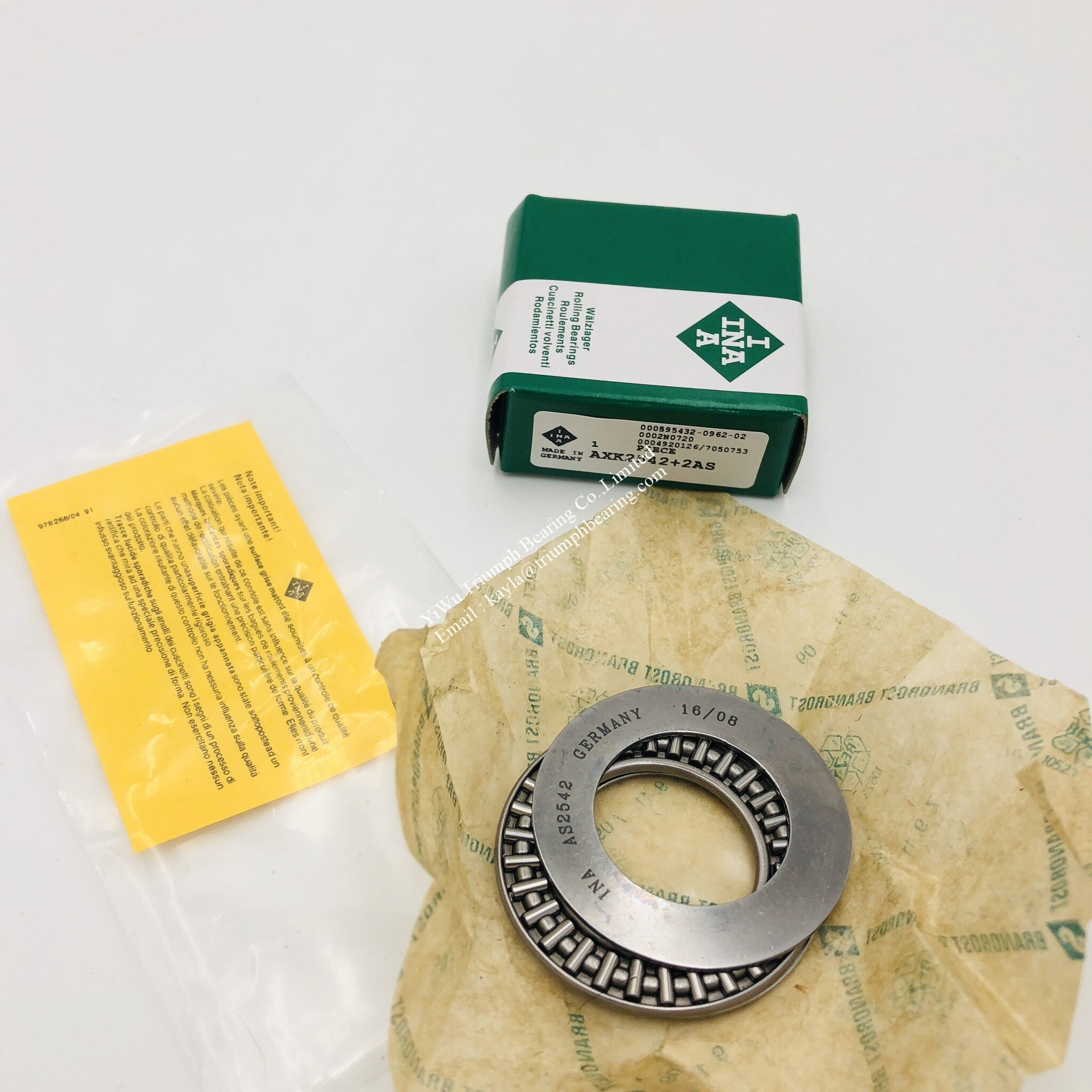

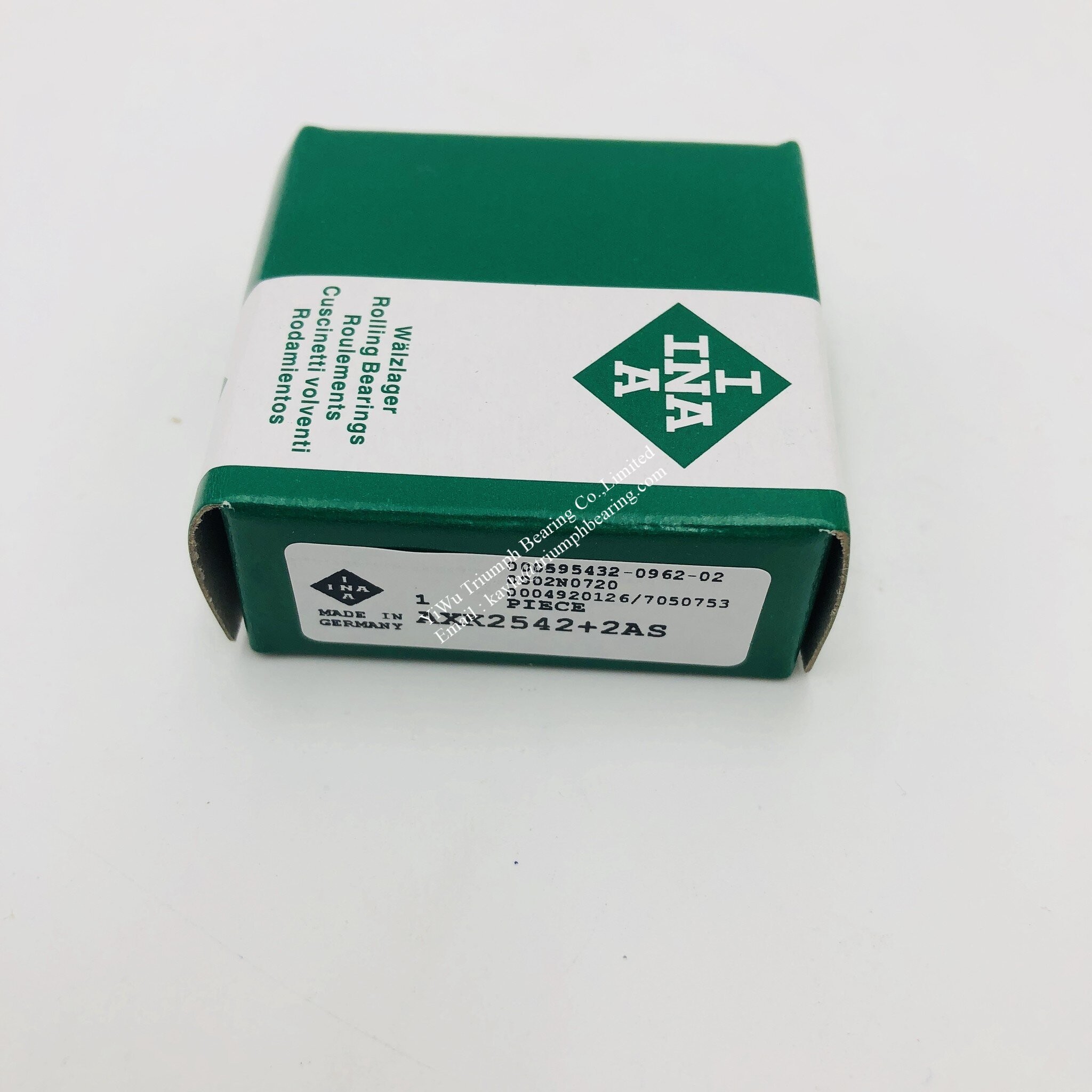

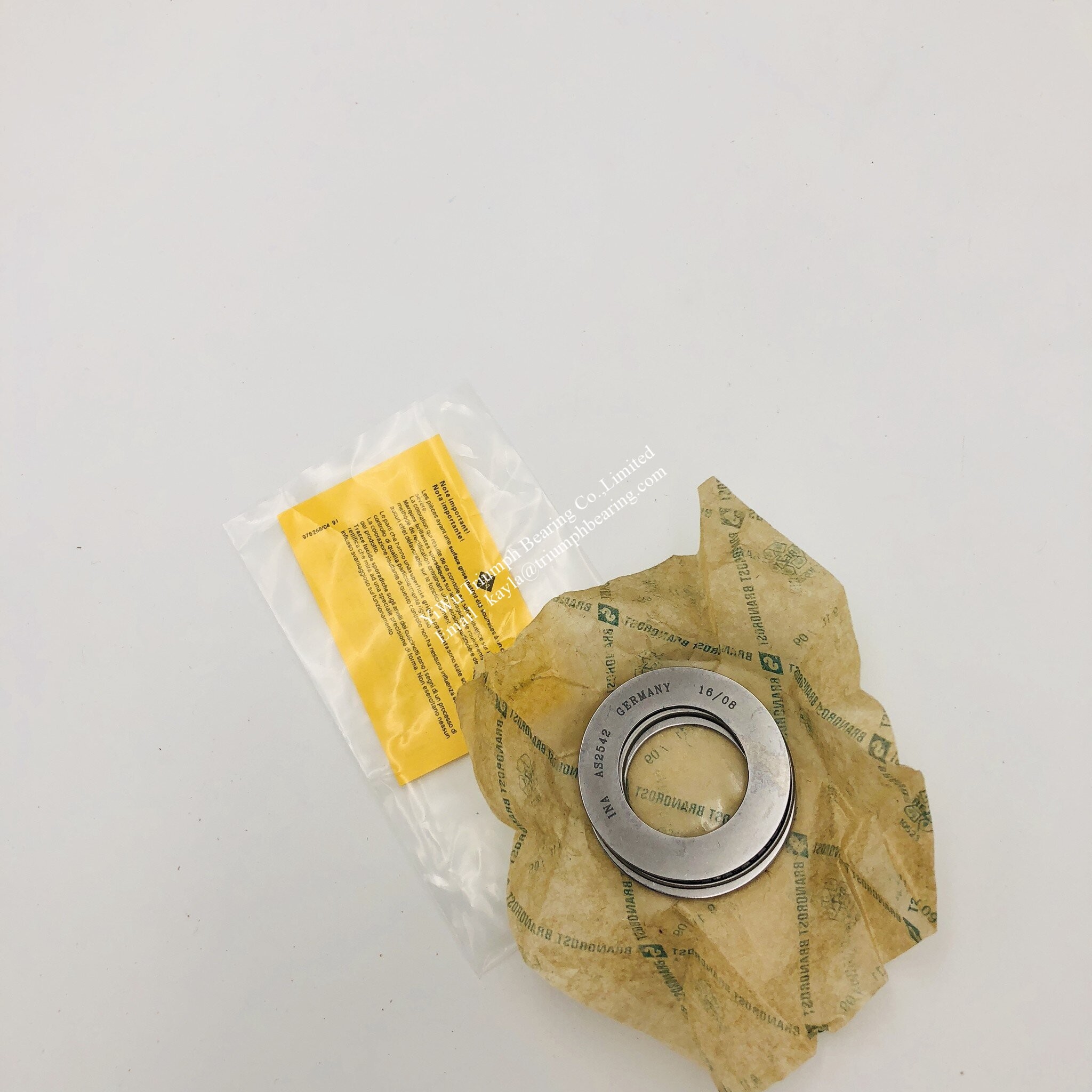

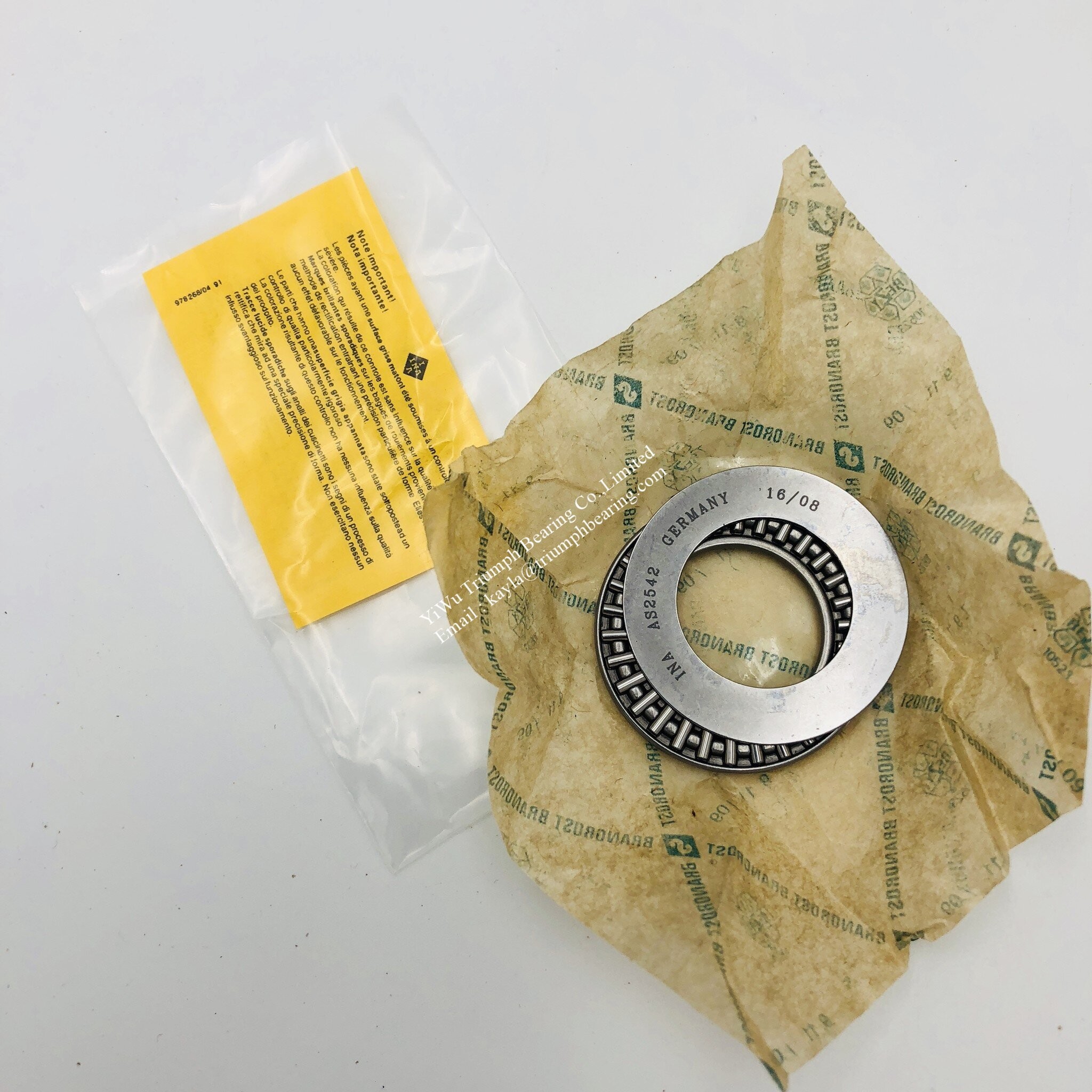

INA Axial Thrust Needle Roller Bearings AXK2542+2AS

  • INA Axial Thrust Needle Roller Bearings AXK2542+2AS
  • INA Axial Thrust Needle Roller Bearings AXK2542+2AS
  • INA Axial Thrust Needle Roller Bearings AXK2542+2AS
  • INA Axial Thrust Needle Roller Bearings AXK2542+2AS
Place of Origin Germany
Brand Name INA
Model Number AXK2542+2AS
Minimum Order Quantity 1PCS
Price FOB
Packaging Details Carton Box
Delivery Time within one day
Payment Terms T/T In advance
Supply Ability 5000PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description
Thrust Shaft Dia Bearing Mass Housing Mass Dimension(mm)
needle roller bearing (mm) Washer Approx (g) Locating Washer Approx (g) d D B1
AXK0414TN 4 AS0414 1     4 14 2
AXK0515TN 5 AS0515 1     5 15 2
AXK0614TN 6 AS0614 1     6 14 2
AXK0619TN 6 AS0619 2     6 19 2
AXK0821TN 8 AS0821 2     8 21 2
AXK1024 10 AS1024 3     10 24 2
AXK1226 12 AS1226 3     12 26 2
AXK1528 15 AS1528 3 GS81102 8 15 28 2
AXK1722 17 AS1722 3     17 22 2
AXK1730 17 AS1730 4 GS81103 9 17 30 2
AXK2035 20 AS2035 5 GS81104 12 20 35 2
AXK2542 25 AS2542 7 GS81105 19 25 42 2
AXK3047 30 AS3047 8 GS81106 20 30 47 2
AXK3552 35 AS3552 9 GS81107 27 35 52 2
AXK4060 40 AS4060 12 GS81108 37 40 60 3
AXK4565 45 AS4565 13 GS81109 47 45 65 3
AXK5070 50 AS5070 14 GS81110 51 50 70 3
AXK5578 55 AS5578 18 GS81111 82 55 78 3
AXK6085 60 AS6085 22 GS81112 92 60 85 3
AXK6590 65 AS6590 24 GS81113 110 65 90 3
AXK7095 70 AS7095 25 GS81114 120 70 95 4
AXK75100 75 AS75100 27 GS81115 136 75 100 4
AXK80105 80 AS80105 28 GS81116 144 80 105 4
AXK85110 85 AS85110 29 GS81117 151 85 110 4
AXK90120 90 AS90120 39 GS81118 225 90 120 4
AXK100135 100 AS100135 50 GS81120 350 100 135 4
AXK110145 110 AS110145 55 GS81122 385 110 145 4
AXK120155 120 AS120155 59 GS81124 415 120 155 4
AXK130170 130 AS130170 65 GS81126 643 130 170 5
AXK140180 140 AS140180 79 GS81128 749 140 180 5
AXK150190 150 AS150190 84 GS81130 796 150 190 5
AXK160200 160 As160200 89 Gs81132 842 160 200 5
